Exercise

Exercise: Service

1. In the votingapp directory, create YAML files containing the specifications for the Services of each microservice in the application, according to the table below:

   Microservice	File Name	Service Type	Service Details
   Vote UI	service-voteui.yaml	NodePort (31000)	nodePort 31000, port: 80, targetPort: 80
   Vote	service-vote.yaml	ClusterIP	port: 5000, targetPort: 5000
   Redis	service-redis.yaml	ClusterIP	port: 6379, targetPort: 6379
   Postgres	service-db.yaml	ClusterIP	port: 5432, targetPort: 5432
   Result	service-result.yaml	ClusterIP	port: 5000, targetPort: 5000
   Result UI	service-resultui.yaml	NodePort (31001)	nodePort 31001, port: 80, targetPort: 80

   Note that it is not necessary to expose the worker Pod with a Service as no Pod needs to connect to it. Instead, it is the worker Pod that connects to redis and db.

   For each Pod/Service pair, make sure to properly define a label in the Pod and the corresponding selector in the Service.

2. Deploy the application defined by these specifications

3. Access the vote and result interfaces via the NodePort Services

4. Delete the application

Tip

1. The Service specifications are as follows:

   service-voteui.yamlservice-vote.yamlservice-redis.yamlservice-db.yamlservice-result.yamlservice-resultui.yaml

   apiVersion: v1
   kind: Service
   metadata:
     labels:
       app: vote-ui
     name: vote-ui
   spec:
     type: NodePort
     ports:
       - port: 80
         targetPort: 80
         nodePort: 31000
     selector:
       app: vote-ui


   apiVersion: v1
   kind: Service
   metadata:
     labels:
       app: vote
     name: vote
   spec:
     ports:
       - port: 5000
         targetPort: 5000
     selector:
       app: vote


   apiVersion: v1
   kind: Service
   metadata:
     labels:
       app: redis
     name: redis
   spec:
     type: ClusterIP
     ports:
       - port: 6379
         targetPort: 6379
     selector:
       app: redis


   apiVersion: v1
   kind: Service
   metadata:
     labels:
       app: db
     name: db
   spec:
     type: ClusterIP
     ports:
       - port: 5432
         targetPort: 5432
     selector:
       app: db


   apiVersion: v1
   kind: Service
   metadata:
     labels:
       app: result
     name: result
   spec:
     ports:
       - port: 5000
         targetPort: 5000
     selector:
       app: result


   apiVersion: v1
   kind: Service
   metadata:
     labels:
       app: result-ui
     name: result-ui
   spec:
     type: NodePort
     ports:
       - port: 80
         targetPort: 80
         nodePort: 31001
     selector:
       app: result-ui


2. Deploy the application with the following command from the votingapp directory:

   kubectl apply -f .


3. The different Pods are now in Running status:

   $ kubectl get po,svc
   NAME            READY   STATUS    RESTARTS   AGE
   pod/db          1/1     Running   0          20s
   pod/redis       1/1     Running   0          20s
   pod/result      1/1     Running   0          20s
   pod/result-ui   1/1     Running   0          20s
   pod/vote        1/1     Running   0          20s
   pod/vote-ui     1/1     Running   0          21s
   pod/worker      1/1     Running   0          20s

   NAME                 TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)        AGE
   service/db           ClusterIP   10.100.10.36     <none>        5432/TCP       20s
   service/kubernetes   ClusterIP   10.96.0.1        <none>        443/TCP        29m
   service/redis        ClusterIP   10.107.167.249   <none>        6379/TCP       20s
   service/result       ClusterIP   10.105.157.142   <none>        5000/TCP       20s
   service/result-ui    NodePort    10.101.30.191    <none>        80:31001/TCP   20s
   service/vote         ClusterIP   10.96.108.192    <none>        5000/TCP       20s
   service/vote-ui      NodePort    10.104.203.9     <none>        80:31000/TCP   20s

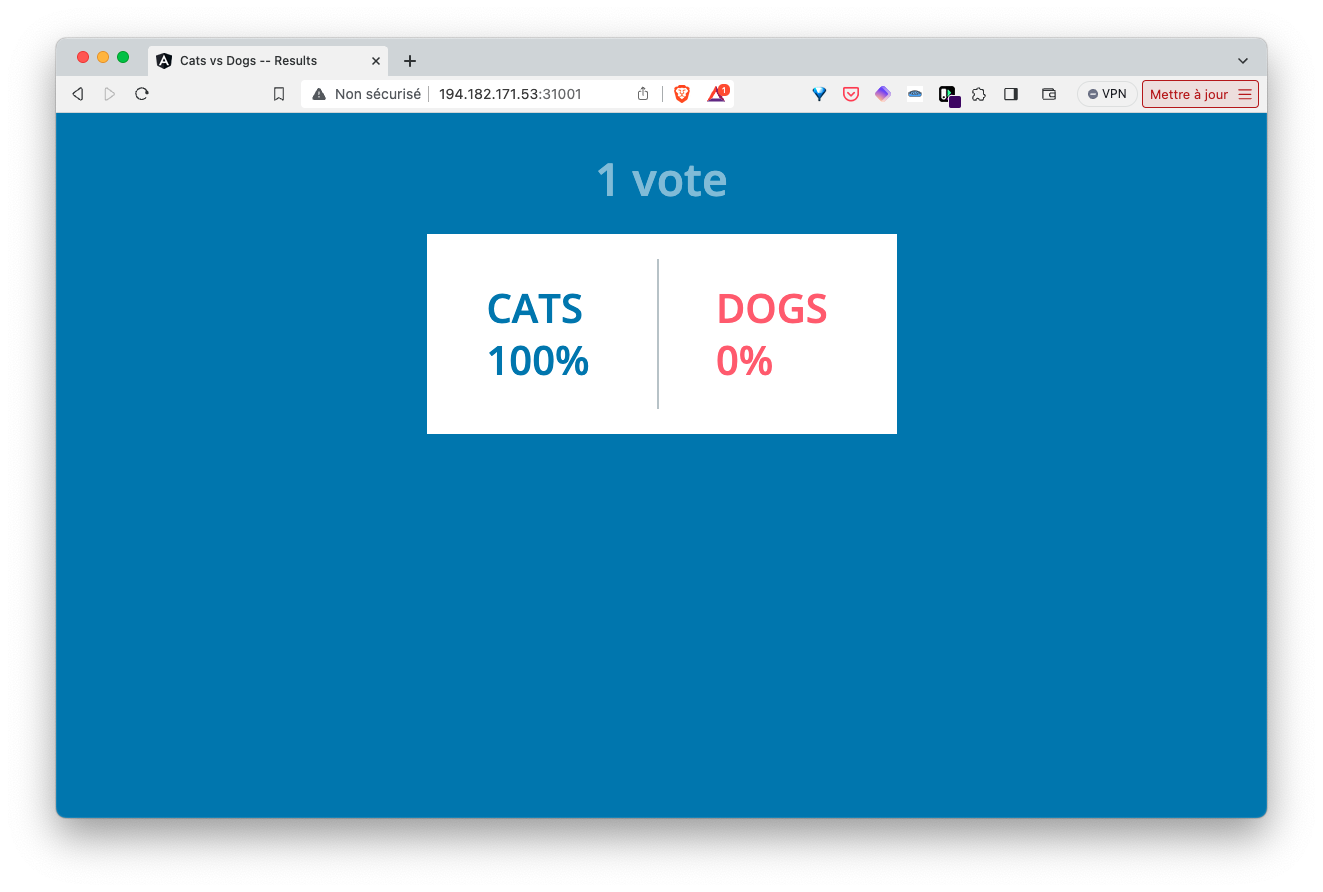

   Using the IP address of one of the cluster nodes, we can access the vote and result interfaces via ports 31000 and 31001 respectively.





4. Delete the application with the following command:

   kubectl delete -f .
